Horizontal Tankmount

Basic Oil-free air that can be used in very small applications that clean dry air is needed.This Simplex Scroll Compressor starts in 2HP and has a desiccant or refrigerated dryer.Can be set for 145psig for any applications requiring more than 120pisg.The horizontal configurations work well where there is space limitations.

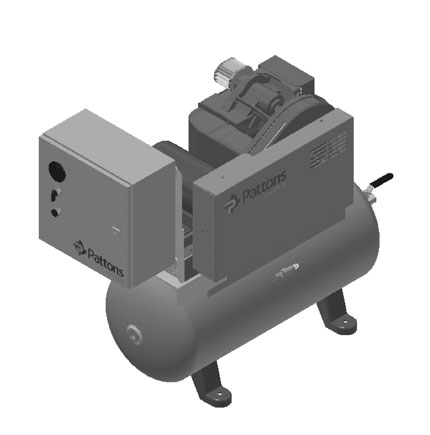

Simplex

System	HP	System Capacity (SCFM)		Specification
System	HP	110 psig	145 psig	Specification
Simplex	2	7	n/a	63-11-021-PDS
	3	8.6	7.1	63-11-031-PDS
	5	17.2	n/a	63-11-052-PDS
	7.5	24	15.5	63-11-073-PDS

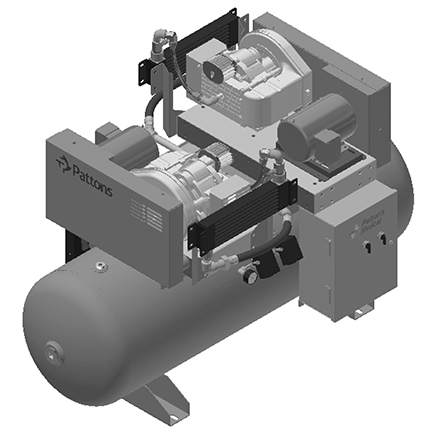

Duplex

System	HP	System Capacity (SCFM)		Specification
System	HP	110 psig	145 psig	Specification
Duplex	2	14	n/a	63-21-022(A/B/C)
	3	17.2	14.2	63-21-032(A/B/C)
	5	34.4	n/a	63-21-053(A/B/C)
	7.5	48	31	63-21-074(A/B/C)
