Medical Gas Pipeline

Features & Benefits

NFPA 99 and CSA standards

Configurations for any size project

LCD Alarms in Master, Area and Master/Area Configurations

Shipping done in same day

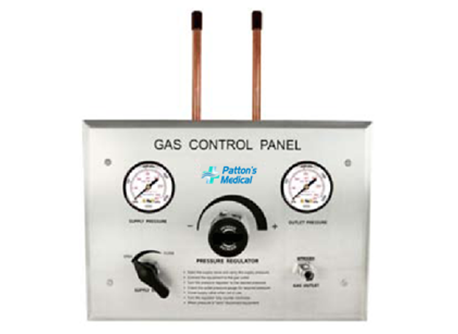

Pattons Medical offers complete medical gas pipeline equipment and medical gas pipeline products that meets or exceed NFPA 99 and CSA standards in addition to being U.L listed. Our medical gas manifolds come in two models to deliver gas from either high pressure “H” cylinders or liquid tanks. Our Manifolds are available for standard NFPA gasses such as Oxygen, Medical Air, Nitrogen and Instrument Air. Pattons Medical also offers specialty gas manifolds for laboratories such as Argon, Hydrogen and others. Pattons Medical Zone Valve Boxes are available in multiple sizes and configurations for any size project. Pattons Medical’s LCD Alarms are available in Master, Area and Master/Area Combination configurations. Pattons Medical offers medical gas outlets for every gas in every QuickConnect keying index. We also have all the additional equipment needed such as Nitrogen and Instrument Air control panels, Emergency Oxygen Inlets (EOSC), hose retractors and hose assemblies. Our pipeline equipment is stocked in Charlotte, NC and many items can ship same day.

In addition to providing medical pipeline equipment, Pattons Medical can also assist with ensuring all your medical gas piping is designed and is installed in accordance with the latest edition of the NFPA 99 code. For installation on large projects, we can work with you to manage deliveries of in-wall items to meet your demanding construction schedule.

MEDICAL GAS PIPELINE APPLICATION

Hospitals rely on advanced medical gas pipeline systems for various critical functions that ensure the safety and well-being of patients and medical staff. These systems play a pivotal role in healthcare facilities, providing a reliable and controlled supply of medical gases. Below are key applications highlighting the importance of medical gas pipeline products:

1. Patient Care and Treatment: A well-designed medical gas pipeline system in hospitals delivers essential medical gases, such as oxygen and nitrous oxide, directly to patient rooms and operating theatres. This ensures timely and precise gas administration during treatments and procedures.

2. Emergency Response: Hospitals require a constant supply of medical gases for life-saving interventions. The hospital gas pipeline provides quick access to critical gases, facilitating immediate responses to emergencies and trauma cases.

3. Surgical Procedures: Operating rooms depend on a continuous supply of medical gases for anesthesia and surgical tools. The medical gas manifold regulates gas flow, ensuring a safe and controlled environment for surgeries.

4. Maternity Wards: Labor and delivery rooms utilize medical gas outlets to offer pain management options like nitrous oxide to expectant mothers, enhancing the comfort and care provided during childbirth.

5. Intensive Care Units (ICUs): ICUs require precise control of medical gases for patients on ventilators and life support systems. The hospital gas supply system ensures the consistent availability of gases to sustain critical care.

6. Medical Gas Alarms and Monitoring: Hospitals install medical gas alarms and monitoring panels to maintain a real-time view of gas pressures and ensure the system's integrity, guaranteeing patient safety.

Customized Design: Each healthcare facility is unique, requiring tailored medical gas system designs to meet specific demands. This customization ensures the efficient delivery of gases where and when needed.

FREQUENTLY ASKED QUESTIONS

What is medical gas pipeline system?

A medical gas pipeline system is a complex network of pipes and components within a healthcare facility, primarily hospitals and clinics, designed to deliver medical gases like oxygen, nitrous oxide, and medical air safely and reliably. It includes sources for these gases, a distribution network, medical gas outlets for connecting equipment, gas manifolds to regulate gas flow, monitoring and alarm systems for safety, gas control panels for precise control, and various safety features to prevent cross-contamination and respond to emergencies. Compliance with strict industry standards, like NFPA-99, is paramount to ensure the system’s safety and reliability, making it an essential component for medical procedures, patient care, and life support systems in healthcare settings.

Does Pattons Medical provide design help for medical pipeline for small hospitals?

Yes, Pattons Medical offers expert design assistance for medical pipeline systems, including medical gas pipeline systems tailored for small hospitals. Our experienced team can help you plan and design a customized solution to ensure the safe and efficient delivery of medical gases to meet your facility’s requirements.

How to choose the right medical gas pipeline product for my requirements?

Selecting the appropriate piping for your needs is crucial. To make the right choice, consider factors such as gas types, flow rates, and the specific demands of your medical facility. Pattons Medical can provide guidance on choosing the optimal piping solution to meet your requirements and ensure compliance with industry standards.

What are the standards and certifications of medical gas pipeline products of Pattons Medical?

Pattons Medical’s pipeline products adhere to the strictest industry standards and certifications to guarantee safety and reliability. We understand the importance of compliance, and our products meet the rigorous requirements of standards such as NFPA 99. We emphasize the significance of adhering to standards to ensure the safety and efficiency of medical gas systems.
